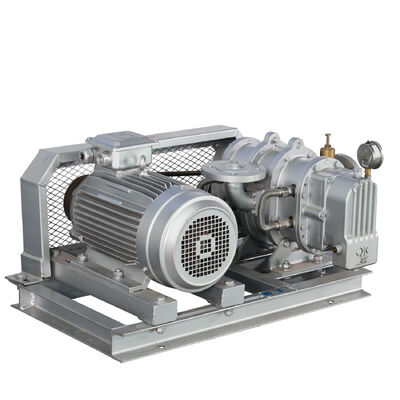

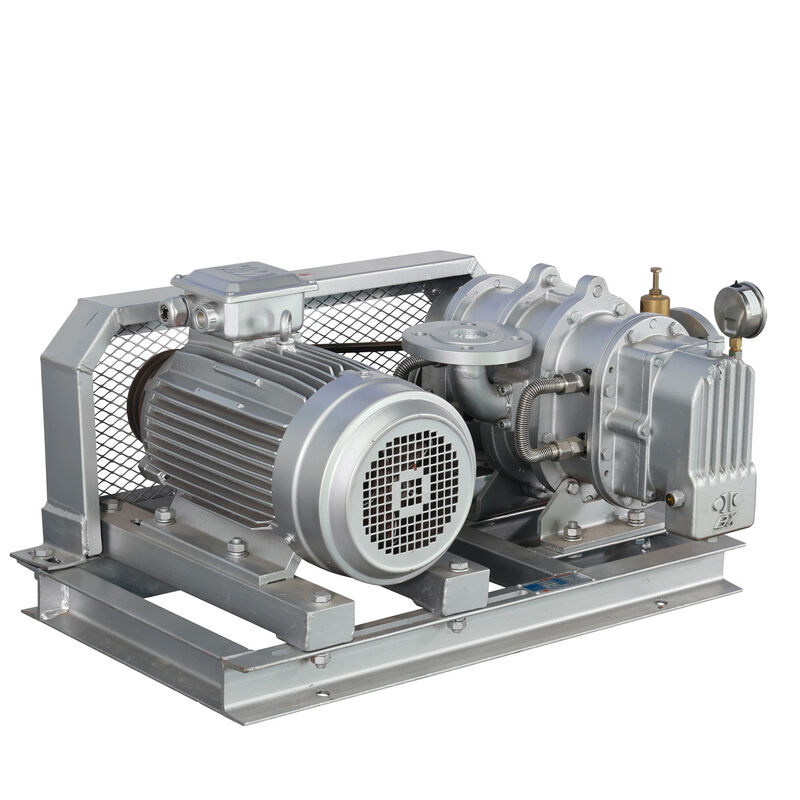

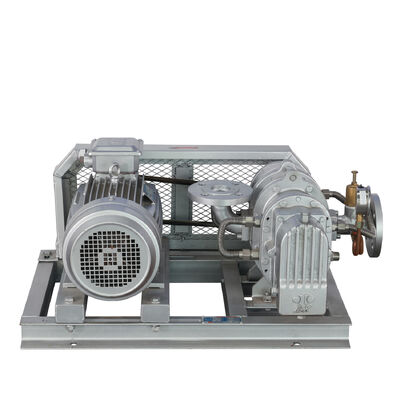

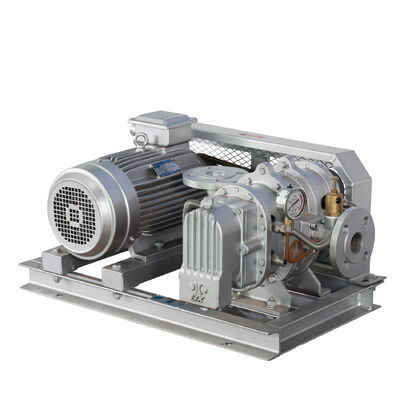

BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers

BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers

BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers
BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers
BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers
Produktdetails:
Herkunftsort: China
Markenname: BK
Zertifizierung: ISO9001
Modellnummer: BX200
Zahlung und Versand AGB:
Min Bestellmenge: 1
Preis: Verhandlungsfähig
Verpackung Informationen: Exportierte Holzkiste
Lieferzeit: 25 Werktage
Versorgungsmaterial-Fähigkeit: 500 Sätze/Monat
Kontakt
Ausführliche Produkt-Beschreibung
Modell: BX200 Port Dia.: 200 (8")
Geschwindigkeit: 850 bis 1500 Umdrehungen Luftstrom: 36,52–77,85 m³/min
Wellenleistung: 21-85,46 kW Druck: 10-60 KPA
Laufradmaterial: Edelstahl Anwendungen: Spezialgas, Verbrennungsanlage, Rohrreinigung, Wärmebehandlung
Vorteile: Einfache Installation, intelligente Steuerung, geringes Rauschen, kleine Schwingung Motorleistung: 22 bis 90 kW
Gewicht: 820 kg Fundamentschrauben: 6-M16*400

BX200  8''  36.52-77.85 m³/min Stainless Steel Roots Blower

1,The main components of BX Roots blower are precisely machined from stainless steel.

2,Key components are processed by machining center at one time,and the dimensional tolerance is accurate to ensure the processing accuracy and the operation stability of the blower under different working conditions.

3,The impeller is made of stainless steel.The special strength and rigidity make the impeller meet the conditions of high speed continuous load without fatigue and deformation.

4,The sealing structure adopts a double mechanical sealing structure and a water cooling sealing system to achieve the reliability of the sealing under different harsh conditions, thus ensuring the leak-free operation of BX Roots blower.



BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers 0







Product Parameters



Performance Parameters Sheet:

Type
Port Dia(MM)		 Speed Inlet airflow(m³／min) and shaft power(KW) at different conditions
0.1kgf/c㎡ 0.2kgf/c㎡ 0.3kgf/c㎡ 0.4kgf/c㎡ 0.5kgf/c㎡ 0.6kgf/c㎡ 0.7kgf/c㎡
1000mmH₂O 2000mmH₂O 3000mmH₂O 4000mmH₂O 5000mmH₂O 6000mmH₂O 7000mmH₂O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa 0.05Mpa 0.06Mpa 0.07Mpa
rpm m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW m³/min KW
BX200 200(8") 850 16.42 4.55 15.55 7.97 14.88 10..84 14.33 14.33 13.83 18.05 13.40 21.54 12.88 23.43
900 19.68 5.35 18.81 9.37 18.14 12.76 17.60 16.86 17.10 21.23 16.66 25.34 16.25 26.99
1000 22.95 6.15 22.08 10.78 21.40 14.67 20.86 19.39 20.36 24.42 19.92 29.14 19.51 31.04
1050 25.12 6.69 24.25 11.72 23.58 15.95 23.03 21.08 22.53 26.54 22.10 31.67 21.69 33.74
1150 28.39 7.49 27.52 13.12 26.84 17.86 26.30 23.61 25.80 29.73 25.36 35.48 24.95 37.79
1250 30.56 8.03 29.69 14.06 29.02 19.14 28.47 25.30 27.97 31.85 27.54 38.01 27.12 40.49
1400 72.35 33.57 70.45 42.81 68.99 52.05 67.75 61.29 66.67 70.53 65.69 79.76
1500 77.85 35.97 75.94 44.72 74.48 55.77 73.25 65.67 72.16 75.56 71.18 85.46


Outline Dimension


BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers 1BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers 2


Outline Dimension Sheet


Model Port Dia.(DN) Motor Power (kw) A B B1 C D E F G H R I J K L M N P Foundation Bolts Weight(kg)
BX200 8" 22~90KW 1800 1420 710 190 624 1150 580 620 1895 220 28 462 386 905 190 1000 24 6-M16x400 820


Sample Use
BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers 3

Main Products
BX200 8'' 36.52-77.85m³/min 0.1-0.6 kgf/cm² Stainless Steel Air Roots Blowers 4

FAQ

Q1. Are you manufacturer or trading company?

We are the professional machinery manufacturer.Now the company has formed an annual production and sales scale of more than 30000 sets of blowers and water pumps.



Q2: Where is your factory located? May I have a visit?

Warmly welcome! Our factory is located in the Industrial Park for Environmental Science and Technology , Yixing, China.



Q3:What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.



Q4: What is your warranty?
Our warranty is 12 months after received the machine.



Q5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.



Q6.What is the delivery time?
Product delivery time is generally within 45 days from receipt of deposit.



Q7.Does your machine with CE certificate?

Yes.We have CE certificate,we will offer it if you need.



Q8. Do you accept customization?
We accept customization and we have a professional technical team to provide you with the best solution.
