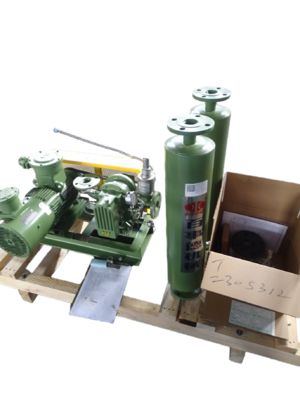

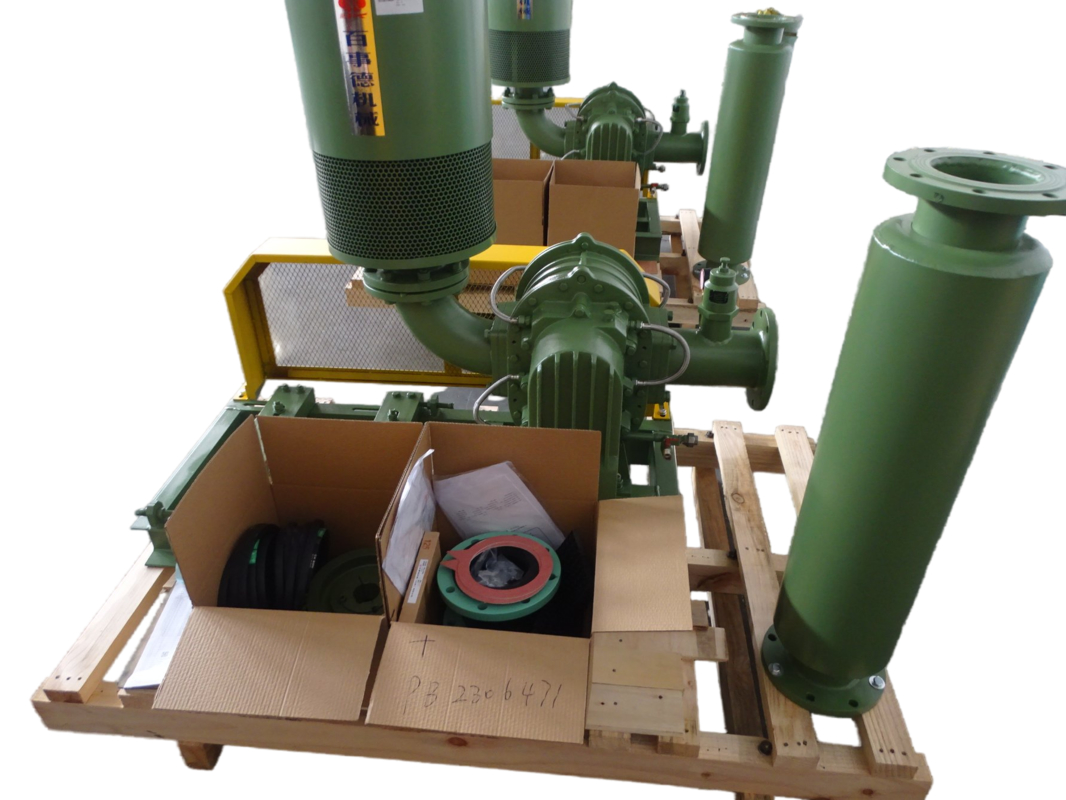

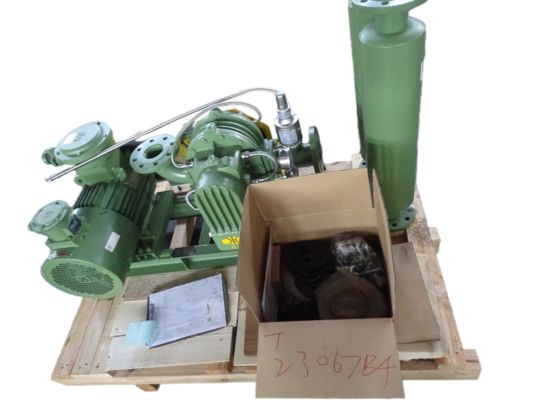

DN50(2") 1.09-2.54 m³/min Corrosion-proof Water Cooling Blower 10-70 KPA

DN50(2") 1.09-2.54 m³/min Corrosion-proof Water Cooling Blower 10-70 KPA

DN50(2") 1.09-2.54 m³/min Corrosion-proof Water Cooling Blower 10-70 KPA
DN50(2
DN50(2") 1.09-2.54 m³/min Corrosion-proof Water Cooling Blower 10-70 KPA
Produktdetails:
Herkunftsort: China
Markenname: BK
Zertifizierung: ISO9001/ISO14001
Modellnummer: YU-EG50
Zahlung und Versand AGB:
Min Bestellmenge: 1 Satz
Preis: Verhandlungsfähig
Verpackung Informationen: Exportieren Sie eine Standard-Holzkiste
Lieferzeit: 15 bis 30 Werktage, abhängig von der Bestellmenge und Spezifikation
Versorgungsmaterial-Fähigkeit: 20 Sätze pro Monat
Kontakt
Ausführliche Produkt-Beschreibung
Kapazität: 1,09–2,54 m³/min Differentialdruck: 10-70kpa
Bohrungsgröße: DN50 (2") Kühltyp: Wasser
Verbindungstyp: Riemengetrieben Gurt und Flaschenzug: Biogas, Abgas, Transport von Explosivmitteln
Kühlwasser: 3 l/min Geschwindigkeit: 1500-2100 U/min
Wellenleistung: 1,04–3,28 kW



Roots type Biogas Blower DN50 anti-corrosive, explosion-proof





About YU-EG



A new type blower designed by our company, impeller and internal surface with special coating, capable of handling particular gases with acids, alkalis, corrosive, inflammable or explosive materials.





Specifications



Model

YU-EG50

Air capacity

1.09-2.54m3/min

Discharge differential pressure

10-70KPA

Rotary speed

1500-2150rpm

Cooling water volume

3 l/min

Motor type

1.5-5.5KW

380/400/415/440V, 3PHASES, 50/60HZ, explosion-proof type motor

Motor brand

Standard: Siemens Beide or Wannan motor

Siemens and ABB motor for your option

Installation type

Standard: vertical type

N.W. of blower without motor

105kg

Packing size Approx.

1.76*0.427*1.225m (length*width*height)

Features

1. Suitable for flammable and corrosive gas because of its explosion proof and antisepsis performance

2. Equipped with multiply seal to prevent leakage

3. Sprayed with special antisepsis material on cylinder and cover.





Parameter sheet





Model Port Inlet capacity (m3/min)and shaft power (kW) under various pressure Cooling water
Speed 0.1kgf/cm2 0.2kgf/cm2 0.3kgf/cm2 0.4kgf/cm2
1000mmH2O 2000mmH2O 3000mmH2O 4000mmH2O
0.01Mpa 0.02Mpa 0.03Mpa 0.04Mpa
m3/min KW m3/min KW m3/min KW m3/min KW (l/min)
YU-EG50 50(2") 1500 1.65 1.04 1.42 1.26 1.24 1.48 1.09 1.69 3
1650 1.88 1.15 1.64 1.38 1.46 1.62 1.31 1.86
1750 2.02 1.22 1.79 1.47 1.61 1.72 1.46 1.97
1850 2.17 1.28 1.94 1.55 1.76 1.82 1.60 2.09
1950 2.32 1.35 2.09 1.64 1.90 1.92 1.75 2.20
2100 2.54 1.46 2.31 1.76 2.13 2.07 1.97 2.37





Model Port Inlet capacity (m3/min)and shaft power (kW) under various pressure Cooling water
Speed 0.5kgf/cm2 0.6kgf/cm2 0.7kgf/cm2 0.8kgf/cm2
5000mmH2O 6000mmH2O 7000mmH2O 8000mmH2O
0.05Mpa 0.06Mpa 0.07Mpa 0.08Mpa
m3/min KW m3/min KW m3/min KW m3/min KW (l/min)
YU-EG50 50(2") 1500                 3
1650 1.17 2.10
1750 1.32 2.23 1.20 2.48 1.09 2.73
1850 1.47 2.35 1.35 2.62 1.24 2.89
1950 1.62 2.48 1.50 2.76 1.39 3.05
2100 1.84 2.67 1.72 2.98 1.61 3.28





Structure of blower main body



DN50(2") 1.09-2.54 m³/min Corrosion-proof Water Cooling Blower 10-70 KPA 0





Assembling drawing of blower package

DN50(2") 1.09-2.54 m³/min Corrosion-proof Water Cooling Blower 10-70 KPA 1





Standard supply of scope



1. shaft blower

2. vacuum pressure relieve valve

3. check valve

4. inlet silencer(with filter)

5. discharge silencer

6. public base (with belt cover)

7. rubber flexible joint and shock pad

8. pulley

9. pressure gauge

10. belt

11. bolts and nuts and other connection parts

12. motor



FAQ


1. What's the information should I provide when inquiry?
A: Air capacity
B: Pressure
C: Application
D: Use environment(Temperature, atmospheric pressure)
E: Do you need motor?
Or other specials you give us will be more appreciated.

2. What is your warranty?
Our warranty is 12 months after received the roots blower. During the warranty period, replace the damaged parts for free of charge. Out warranty period, to provide timely, high-quality technical services and price concessions spare parts to ensure continuous safe and high-quality equipment operation.

3. How long is the service life of roots blower?
In normal use environment
A- Service life of blower is more than 10 years.
B- Service life of Impeller is more than 60, 000 hours.
C- Service life of bearing is more than 50, 000 hours.
D- Service life of gear is more than 60, 000 hours.

4. What is your terms of packing?
A: Generally, we pack our goods in Fumigation Free Plywood Case. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.

5. How does your factory control product quality?
We have quality inspection department. Before sending out product, we check each product. If there is quality problem, we will produce new one.

6. What are your terms of payment?
1. TT30% as the advanced payment and TT 70% after inspection before shipping.
2.100% irrevocable L/C at stght.
